Description

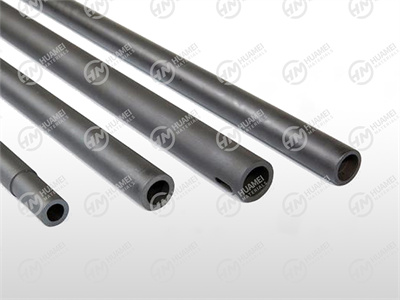

RBSiC/SiSiC/SSiC components for energy-saving kiln furniture mainly includes rollers/tubes/pipes/rods etc. KCE® Silicon carbide rollers/tubes/pipes/rods are formed by extrusion molding and high-temperature sintering. Drilling and slotting shall be carried out according to the customer's design drawings, and the inner and outer diameters of both ends shall be precision machined to meet the user's engineering installation requirements.
Specifications
KCE® SiSiC/RBSiC/SSiC Technical Data Sheet
| Technical Parameters | Unit | SiSiC/RBSiC Value | SSiC Value |
| Silicon Carbide content | % | 85 | 99 |
| Free Silicon content | % | 15 | 0 |
| Bulk Density 20°C | g/cm³ | ≥3.02 | ≥3.10 |
| Open Porosity | Vol % | 0 | 0 |
| Hardness HK | kg/mm² | 2600 | 2800 |
| Flexural Strength 20°C | MPa | 250 | 380 |
| Flexural Strength 1200°C | MPa | 280 | 400 |
| 20 – 1000°C (Coefficient of Thermal Expansion) | 10–6 K–1 | 4.5 | 4.1 |
| Thermal Conductivity 1000°C | W/m.K | 45 | 74 |
| Static 20°C（Modulus of Elasticity ) | GPa | 330 | 420 |
| Working temperature | °C | 1300 | 1600 |
| Max. Service Temp (air) | °C | 1380 | 1680 |
Applications
Silicon carbide ceramic rollers/tubes/pipes/rods are mainly used in high-temperature industrial scenarios. KCE® SIC Roller bars are used for transmission support in high-temperature roller kilns. The industries of application include technical ceramics DPF, Sintering process for materials such as positive and negative electrode materials of lithium-ion and lithium-ion batteries, electronic ceramic powders, sanitary ware, daily-use ceramics, magnetic materials, refractory materials, etc.
Advantages
With its characteristics of high temperature resistance, corrosion resistance, and good thermal conductivity, they are used in ceramic kilns to increase production capacity. Their corrosion resistance can extend the service life of equipment and reduce operating energy consumption.
